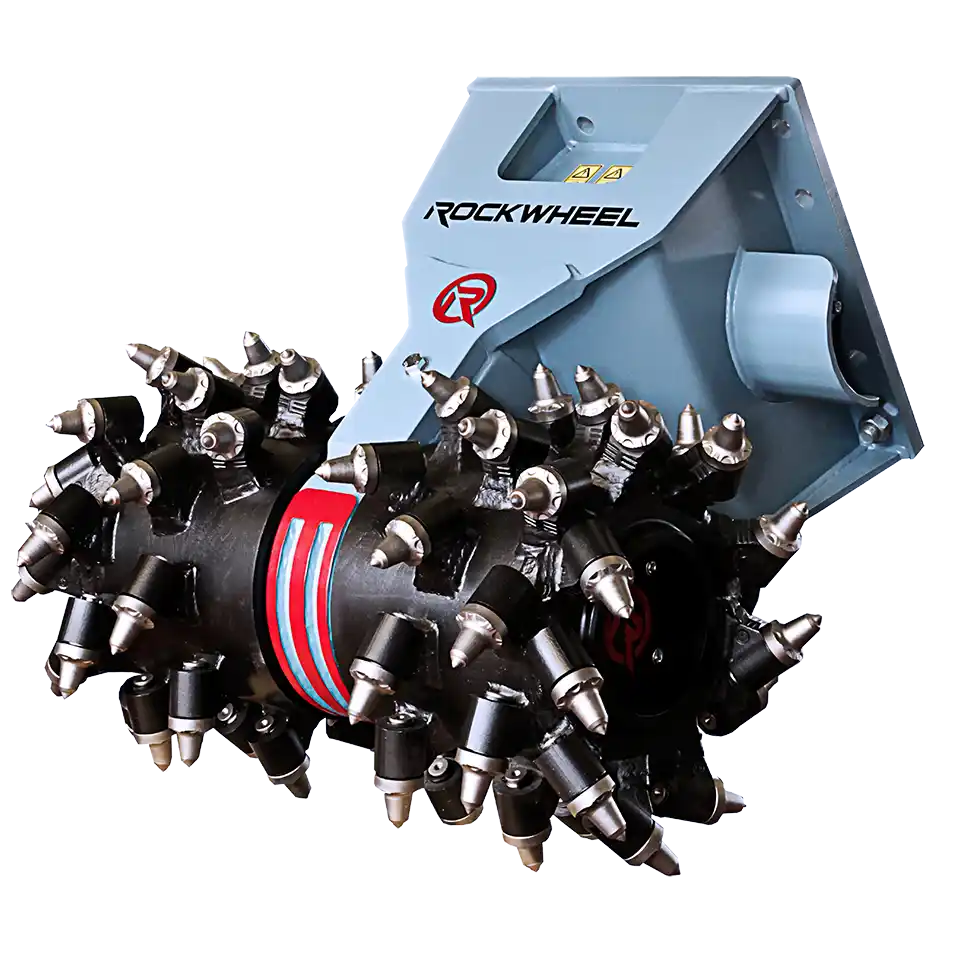

Rockwheel D30
150hp Grinder // 25 - 42 ton Excavators
The Rockwheel D30 is a workhorse grinder that maximizes cutting efficiency for the 30 ton carrier class.
Specs
- 46" cutting width
| Rockwheel Direct Drive | D30 | |
| Excavator Class | tons | 25 - 42 |
| Hydraulic Input Power | hp (kW) | 150 (110) |
| Required Flow Rate | GPM (l/min) | 55-110 (208-412) |
| Operating Pressure (Max) | psi (bar) | 5800 (400) |
| Drum Speed | RPM | 50-75 |
| Max Torque | ft/lbs (kNm) | 19,715 (26.7) |
| Max Cutting Force | lbs (kN) | 17,752 (79) |
| Drum Width *optional | in (mm) | 46 (1156) / *37(935) |
| Drum Diameter | in (mm) | 27 (677) |
| Picks/Bits | # | 60 |
| Weight (w/o bracket) | lbs (kg) | 3185 (1445) |
