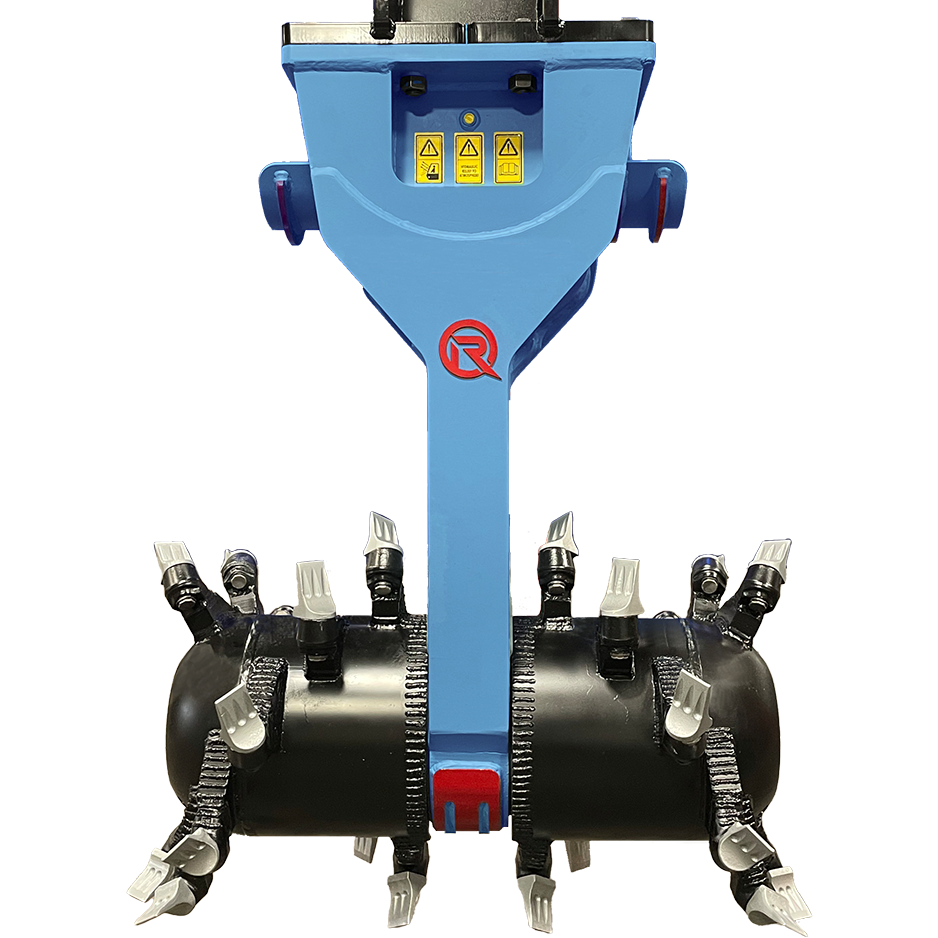

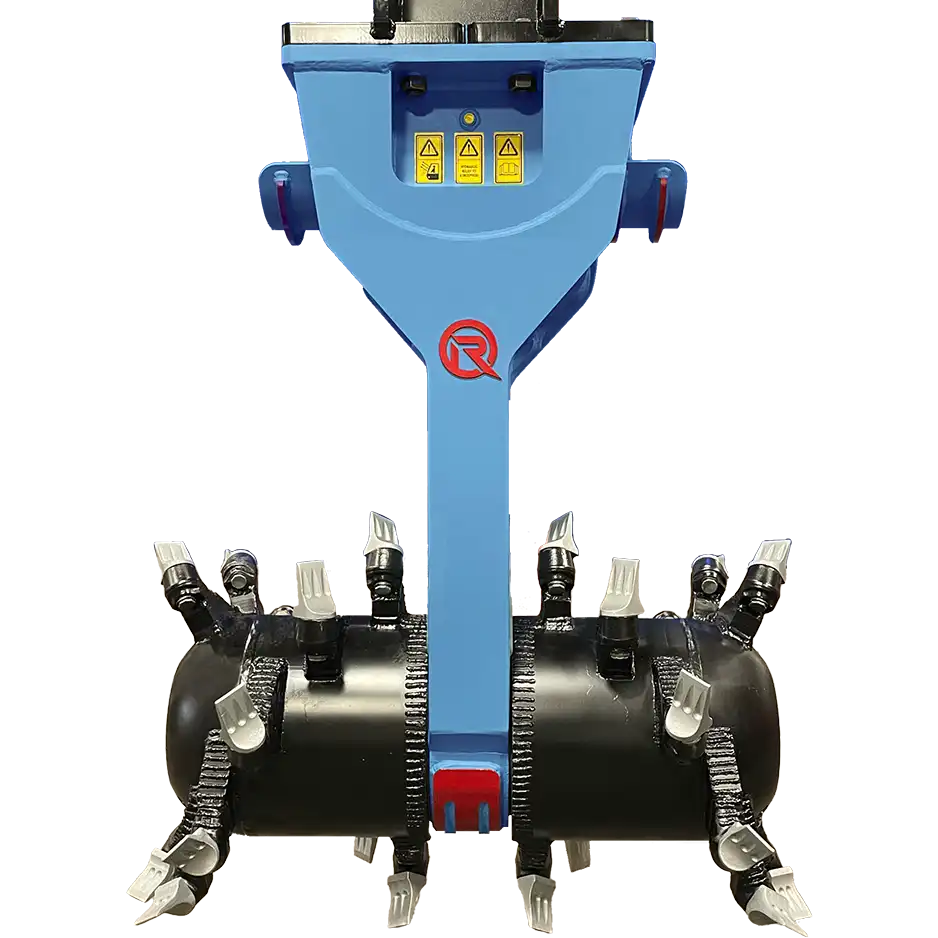

MXR D30 LH


150hp // Long Housing (LH) // 25-42t Exc.



The MXR-D30 LH offers a longer housing body that allows deeper penetration and removes the chance of any material obstruction between the drums and housing. This is the world's best 30t-carrier class soil mixing attachment with plenty of customizable features. Built on a Rockwheel D30 design, the MXR has custom options for paddle layout, drum width, amendment feeder system piping, bumpers for tank mixing, and practically any other custom feature requested. The MXR-D30 LH is the class leader for dependable and powerful mixing attachments.

Please contact us if you have a unique project that requires unique solutions!



Specs


  • 53" mixing width
Rockwheel Direct Drive MXR-D30 LH
Excavator Class tons 25 - 42
Hydraulic Input Power hp (kW) 150 (11)
Required Flow Rate GPM (l/min) 55-110 (208-412)
Operating Pressure (Max) psi (bar) 5800 (400)
Drum Speed RPM 75 - 140
Max Torque ft/lbs (kNm) 17,250 (23.4)
Drum Width in (mm) 53 (1350)
Weight (w/o bracket) lbs (kg) 3600 (1635)
