Axial Mixers

Axial Mixers

Robust enough for the toughest applications, every MXR model has a range of motor configurations that allow adjustment for site specific conditions and pairing with the hydraulic output of the carrier excavator.

In addition to optimizing drum speed, input power and torque, drums are designed for maximum blending efficiency and homogenization of the substrate. The discontinuous spiral pattern of mixing blades generates simultaneous lateral flow and vertical shearing which results in a uniform mix and high surface area contact between additives and substrate.

Available Features

  • Custom drum configuration, designed for your specific project
  • Extention brackets for increased mixing reach
  • Feed piping for amendment application at the mixing head
  • Mixing paddle options to meet your project specfics

Contact us to discuss your project or any ideas you have for custom mixer design!

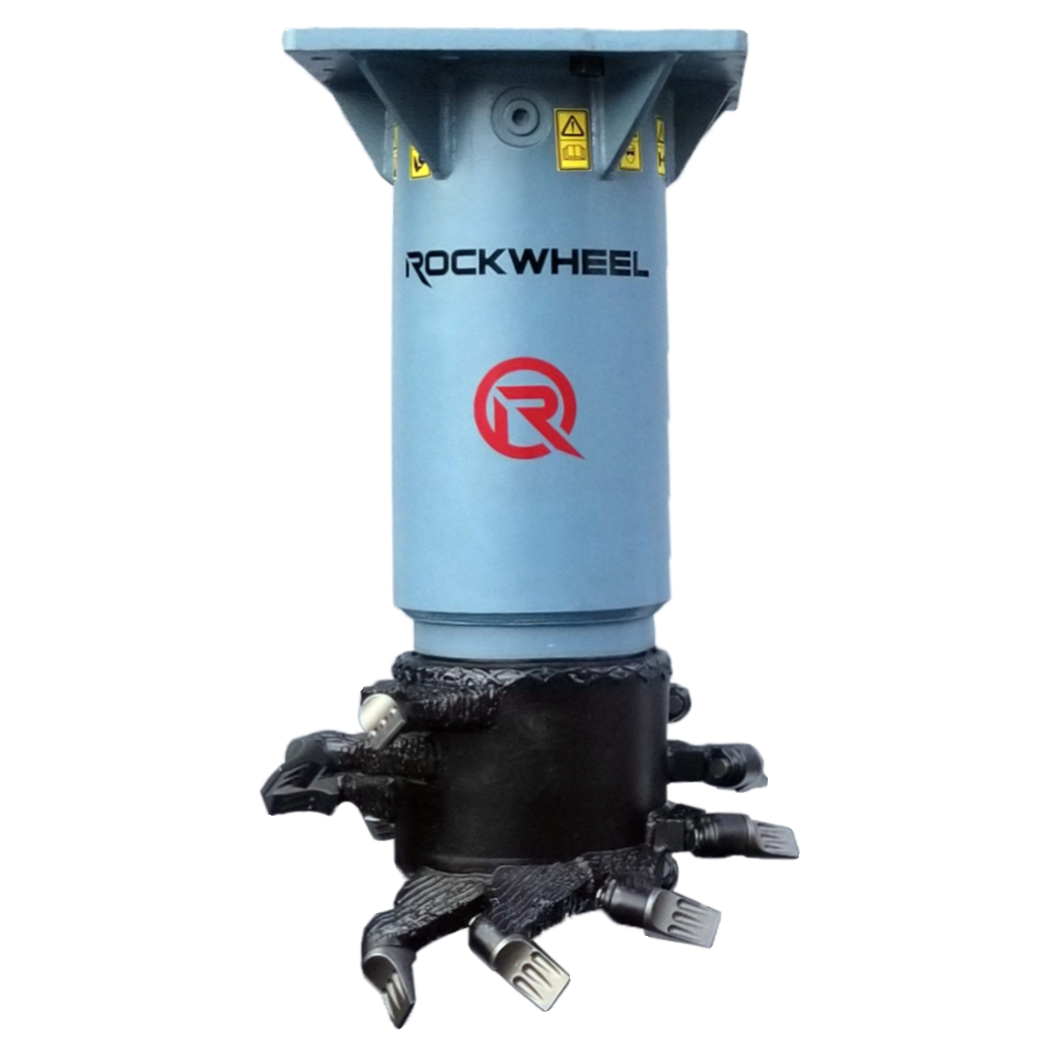

Rockwheel Model MXR-AX20
Hydraulic Input Power hp (kW) 95 (70)
Required Flow Rate GPM (l/min) 30-55 (150-208)
Operating Pressure (Max) psi (bar) 5800 (400)
Drum Speed RPM 50 - 100
Max Torque ft/lbs (kNm) 13,206 (17.9)
Weight (w/o bracket) lbs (kg) 1995 (885)
Rockwheel Model MXR-AX30
Hydraulic Input Power hp (kW) 150 (110)
Required Flow Rate GPM (l/min) 55 - 110 (208 - 412)
Operating Pressure (Max) psi (bar) 5800 (400)
Drum Speed RPM 50 - 140
Max Torque ft/lbs (kNm) 19,715 (26.7)
Weight (w/o bracket) lbs (kg) 2200 (980)
