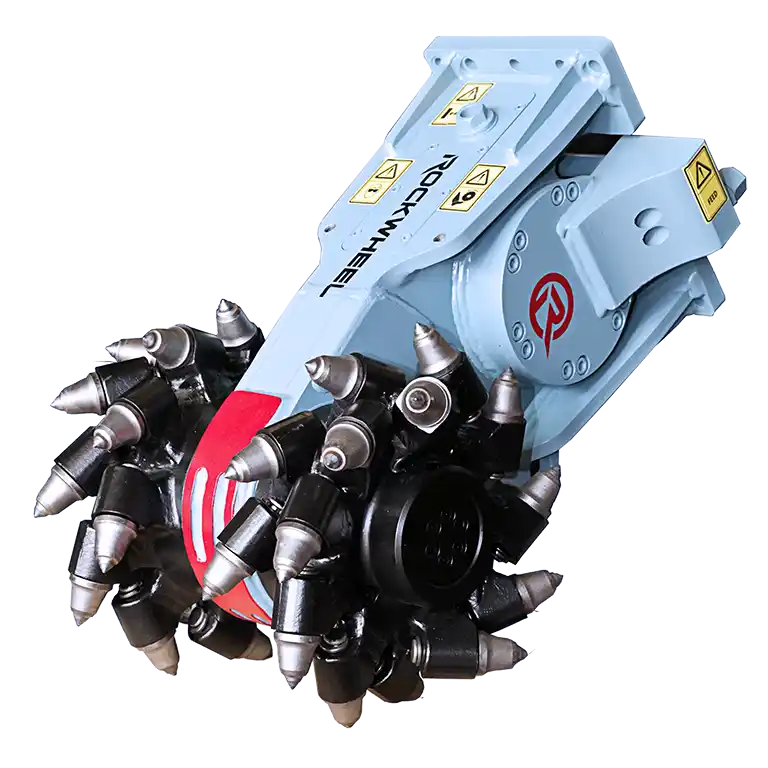

Rockwheel G5
30hp Grinder // 2.5 - 6 ton Carriers

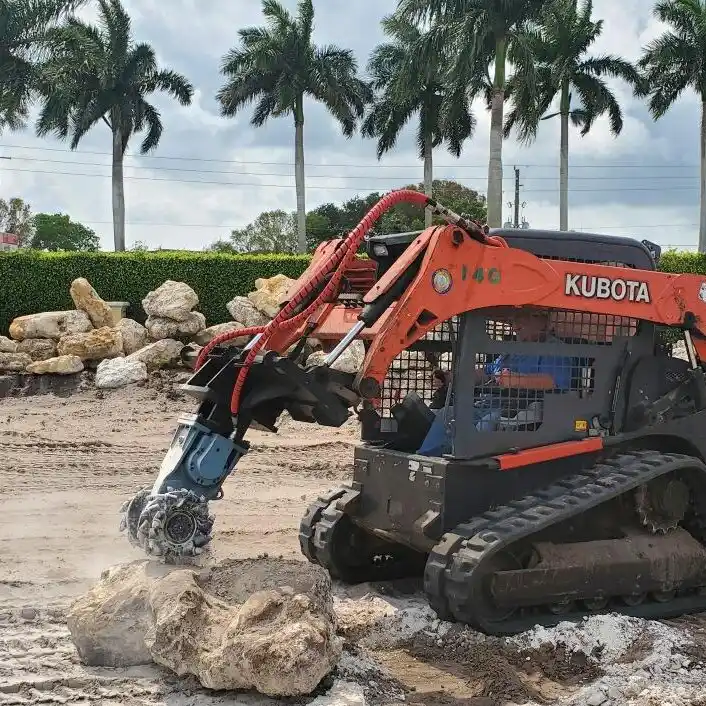

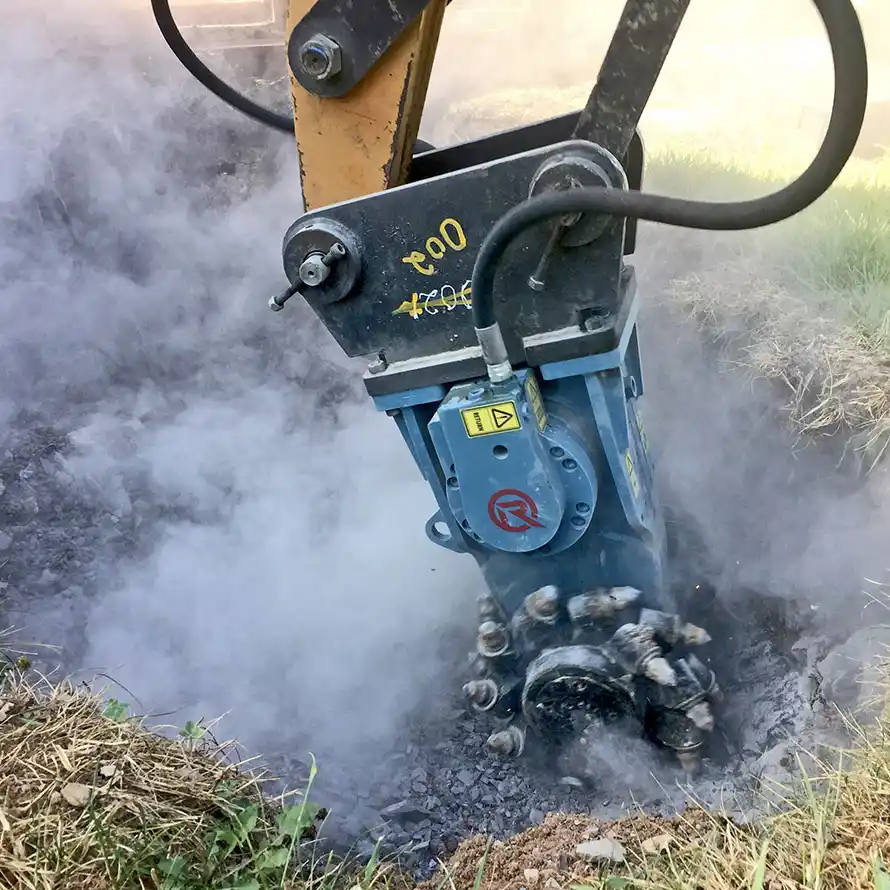

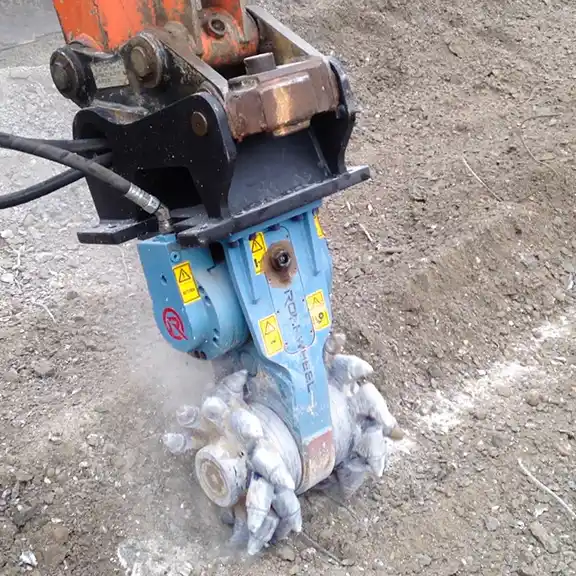

The Rockwheel G5 is a beast on mini excavators, skid steer loaders and backhoes. The gear-reduction transmission outputs more power into the 16" cutting width. This is a perfect tool for utility project trenching and excavation, concrete demolition or scaling.
Specs
- 16" cutting width
- Common carriers: Cat 305.5, Deere 60G, Takeuchi TB240, skid steer loaders, backhoes (for reference only)
Rockwheel Model | G5 | |
Excavator Class | tons | 2.5-6 |
Hydraulic Input Power | hp (kW) | 30 (22) |
Required Flow Rate | GPM (l/min) | 15 - 25 (56-95) |
Operating Pressure (Max) | psi (bar) | 5800 (400) |
Gear Ratio | 2:1 | |
Drum Speed | RPM | 70 - 120 |
Max Torque | ft/lbs (kNm) | 3738 (5.1) |
Max Cutting Force | lbs (kN) | 6703 (29.8) |
Drum Width | in (mm) | 16 (400) |
Drum Diameter | in (mm) | 13 (340) |
Picks/Bits | # | 32 |
Weight (w/o bracket) | lbs (kg) | 400 (181) |
