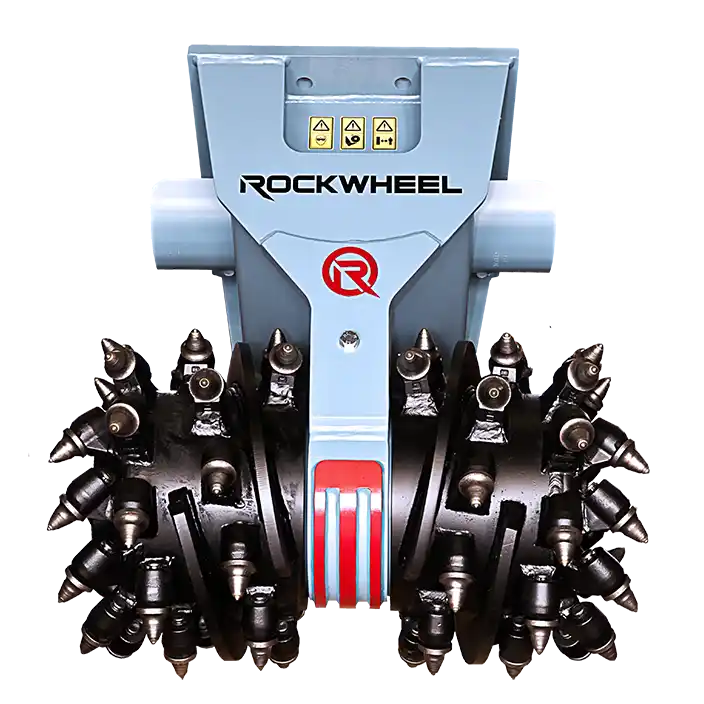

Rockwheel D20
95hp Grinder // 17 - 28 ton Excavators
The Rockwheel D20 is a workhorse grinder that maximizes cutting efficiency for the 20 ton carrier class.
Specs
- 42" cutting width
Rockwheel Direct Drive | D20 | |
Excavator Class | tons | 17 - 28 |
Hydraulic Input Power | hp (kW) | 95 (70) |
Required Flow Rate | GPM (l/min) | 40-55 (150-208) |
Operating Pressure (Max) | psi (bar) | 5800 (400) |
Drum Speed | RPM | 50 - 75 |
Max Torque | ft/lbs (kNm) | 13,206 (17.9) |
Max Cutting Force | lbs (kN) | 12,462 (55.4) |
Drum Width *optional | in (mm) | 42 (1058) / *36 (910) |
Drum Diameter | in (mm) | 26 (646) |
Picks/Bits | # | 64 |
Weight (w/o bracket) | lbs (kg) | 2535 (1170) |
